TakuNetV2

Abstract

TakuNetV2 is the journal extension of TakuNet (WACVW 2025), published in Image and Vision Computing (Rossi et al., 2026). It presents TakuNet as a family of ultra-lightweight convolutional networks for real-time aerial image classification on resource-constrained embedded devices, in the context of disaster response and wide-area monitoring from UAVs. The target regime is deliberately extreme: under 100K parameters, deployable on a Raspberry Pi or a UAV-grade NPU, and fast enough to process the video stream on board.

The work was carried out in collaboration with EBV Elektronik and System Electronics, and includes an evaluation on the Astrial platform, a Hailo-8 based single-board computer designed for UAV deployment.

From V1 to V2

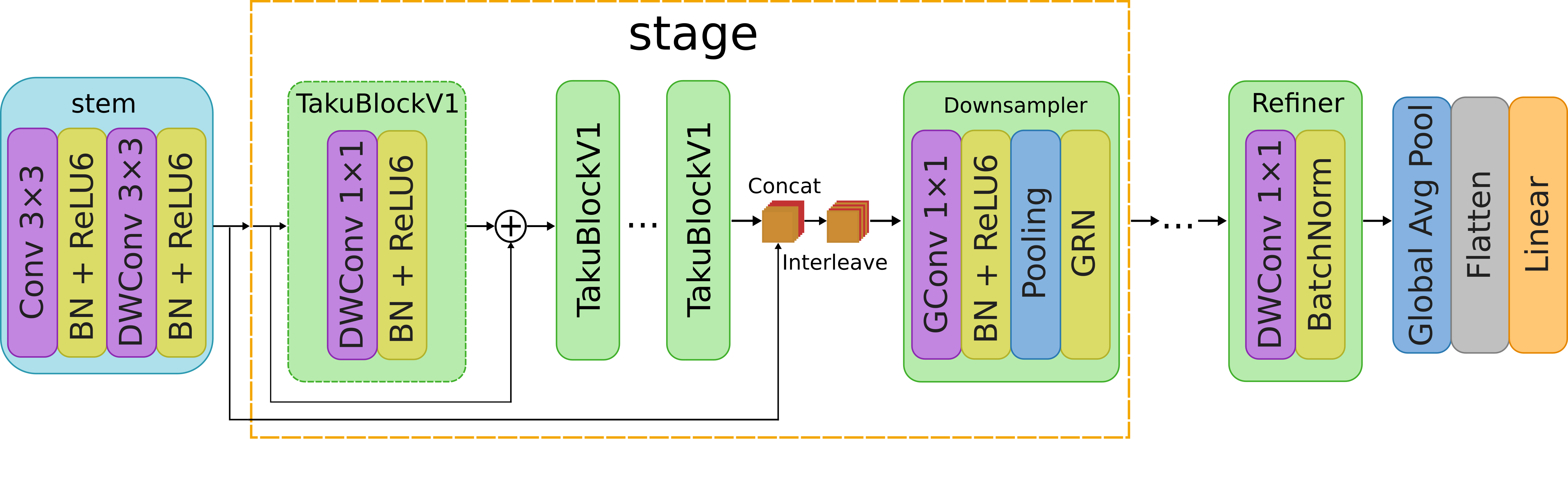

TakuNetV1 is built almost entirely on depth-wise convolutions. That keeps it tiny, but depth-wise kernels process each channel independently, so no cross-channel mixing happens inside the blocks at all: the network’s entire ability to combine channels is delegated to the Downsampler closing each stage. This becomes the dominant error source as the number of semantic classes grows, and it is exactly what V2 attacks.

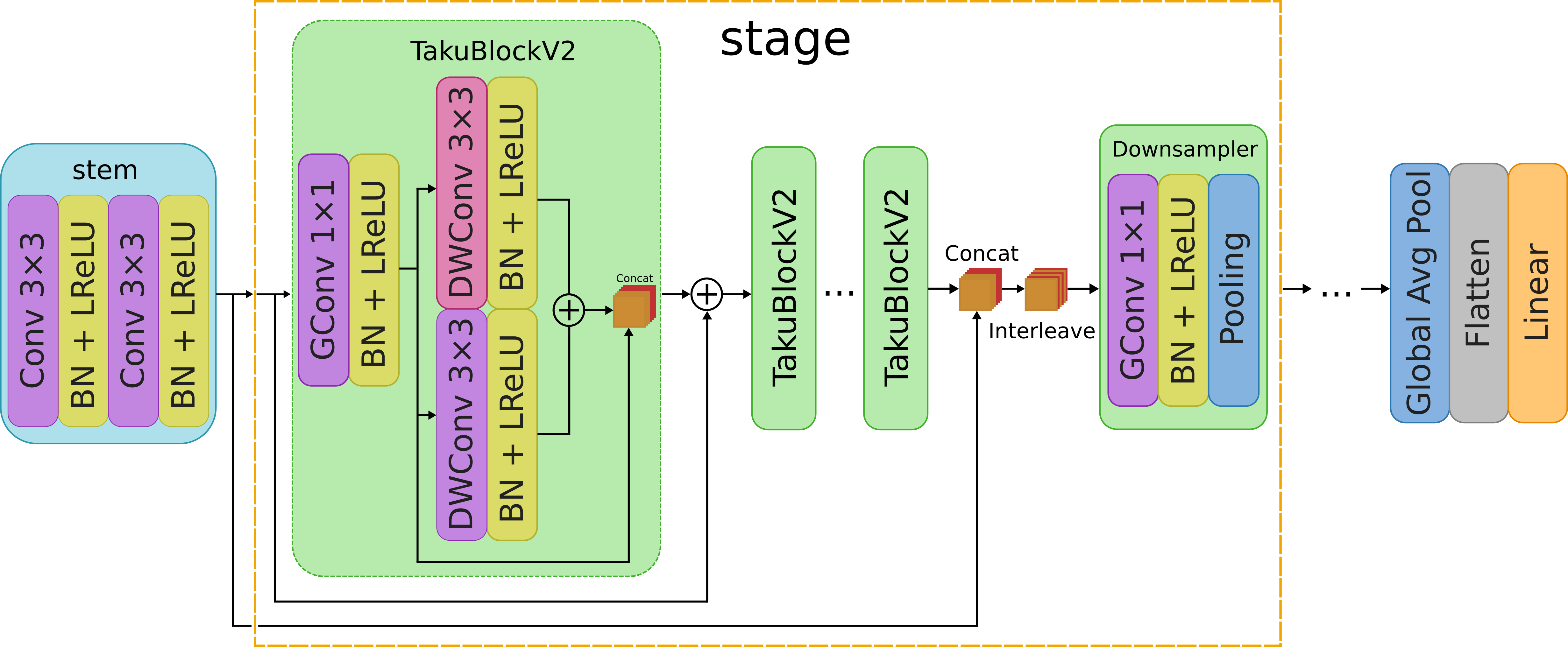

Both networks share the same skeleton (a stem, four processing stages each closed by a Downsampler, and a global average pooling head) and differ in what happens inside:

Three design points carry the accuracy gain:

• A dense stem buys channel context, not capacity. The grouped 1×1 opening each TakuBlockV2 mixes only within its own group. If the preceding stem operator were depth-wise, each compressed channel could only ever see a fixed subset of stem channels. With a full second stem convolution, every stem output already combines all intermediate channels. Dense convolutions also map far better onto NPUs and GPUs than fragmented depth-wise ops.
• Compression before spatial processing. The grouped 1×1 halves the channels on which the depth-wise convolutions run, inverting the inverted bottleneck of MobileNetV2/V3, which expands first and pays for it in intermediate memory and bandwidth.
• Two spatial scales at once, for free. The dilated branch (d=2) widens the receptive field to an effective 5×5 with identical parameter count. Fusing the two branches by summation rather than concatenation means each channel carries both responses without doubling the channel count. That matters in aerial imagery, where the structural edges of a collapsed building and the spatial extent of a flood must be recognised at the same time.

Results

Weighted F1, parameters, memory footprint and FLOPs, restricted to the ultra-lightweight regime (< 100K parameters). The comparison against MobileNets, EfficientNet, ShuffleNet, ViT variants, ResNet-50 and VGG16 is in the paper.

AIDER, 5 classes, 240×240

AIDERv2, 4 classes, 224×224

CLRS, 25 classes, 256×256

The gap widens with the number of classes, which is exactly the prediction made by the cross-channel-mixing argument: on 25-class CLRS, V2 gains more than three F1 points over V1.

Embedded Performance

All measurements at batch size 1, averaged over 2,500 runs. Power is total board consumption during inference. δ-Power is the power drawn above the platform’s idle consumption, so FPS/δ-Power isolates the energy cost of the model from that of the board.

Reading the numbers. TakuNetV1 dominates where operation-count minimality is what the hardware rewards. V2 trades some of that for accuracy and behaves best on hardware with high arithmetic intensity, still running at 560 FPS on the Orin Nano while being the most accurate model of the group on two of the three datasets.

The Hailo-8 row is the exception and is worth an explanation: the Dataflow Compiler splits TakuNetV2 into a two-context execution plan while V1 compiles to a single context, and every context switch costs a PCIe round trip. This is not about model size, given that the chip runs ResNet-50 in one context, but about topology: the parallel dual-branch depth-wise paths and the multi-input concatenation of TakuBlockV2 produce a dataflow graph the current compiler cannot route within a single on-chip allocation. It is a toolchain limitation, it does not occur on any other platform tested, and 358 FPS still exceeds any real-time requirement for aerial classification.

A side measurement drove one design choice, the latency of common activations on a Raspberry Pi 4 over a (10000, 100) tensor:

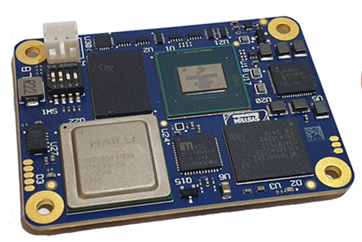

The Astrial Platform

Astrial is an AI-driven single-board computer developed by System Electronics for embedded and UAV applications. It pairs an NXP i.MX8M Plus with a Hailo-8 NPU rated at 26 TOPS (int8) and 32 MB of on-chip memory, adds an NXP SE050 Secure Element, and is qualified for the −40 °C to 85 °C range with a custom 50×40×20 mm aluminium heatsink weighing 64 g. Mass, volume and thermal footprint matter directly on a UAV, where an asymmetric heatsink alters the moment of inertia and exposed cooling surfaces add drag.

Datasets and Reproducibility

The three benchmarks are AIDER (Zenodo 3888300), AIDERv2 (Zenodo 10891054) and CLRS (HuggingFace). The release includes training, evaluation, ONNX export, embedded inference scripts and the trained checkpoints.

The reference environment is Python 3.11, PyTorch 2.2.2 + CUDA 12.1 and PyTorch Lightning 2.2.5. The repository ships with AutoDock, which detects the host device and builds the matching image (desktop with CUDA/TensorRT, Raspberry Pi, Jetson Nano, Jetson Orin):

git clone https://github.com/DanielRossi1/TakuNetV2.git
cd TakuNetV2/AutoDock
./build.sh
./run.sh -d /path/to/data
